Wi‑Fi

:::tip Формат страницы

Порядок действий описан по‑русски. В методике сохранены заголовки (частично локализованы типовые термины), таблицы, иллюстрации и блоки кода: команды и параметры на английском, без перевода синтаксиса.

:::

Порядок действий

1. Подтвердите разрешение на активные действия и уведомите мониторинг (SOC), если требуется.
2. Выполните сканирование и перечисление в согласованных пределах.
3. Углубляйтесь в сервисы по мере находок; фиксируйте версии и конфигурации.
4. Синтаксис команд в методике не локализуется.

Методика

Interface

Monitor mode

# airmon-ng
airmon-ng check kill
airmon-ng [start | stop] <INTERFACE>
# iwconfig
ifconfig <INTERFACE> down
iwconfig <INTERFACE> mode monitor # "manager" mode for normal use
ifconfig <INTERFACE> up

sudo service NetworkManager restart

Change Network card channel

iwconfig <IF> channel <CHANNEL>

Airodump-ng

airodump-ng <MON_IF> [--band a]

airodump-ng [-c <CHANNEL>] [--bsid <BSSID>] [-w <PREFIX_NAME>] [--encrypt OPN|WEP|WPA|WPA1|WPA2|WPA3|OWE] <MON_IF>

Discovery

Discovery of unauthorised access points (Rogue Access Points)

cat <airodump-01.csv> | sed '1d' | sed '/^Station MAC.*$/,$ d' | csvcut -c 1,6,7,8,14 | csvsort -c 1 | grep -v '<SCOPE_BSSID_1>\|<SCOPE_BSSID_2>'

find . -name  'airodump*[[:digit:]].csv' | xargs -I {} bash -c "cat {} | sed '1d' | sed '/^Station MAC.*$/,$ d' | csvcut -c 1,6,7,8,14  | csvsort -c 5 | sed '1d'" | sort -t, -u -k 5 | sed  '1s/^/BSSID, Privacy, Cipher, Authentication, ESSID\n/' | csvgrep -c 1 -i -r '^$'  > APs.csv

BSSID,ESSID,Location
XX:XX:XX:XX:XX:XX,WIFI_CORP_1,1st Floor (Reception)

cat <planta_X-01.csv> | sed '1d' | sed '/^Station MAC.*$/,$ d' | csvcut -c 1,6,7,8,14 | csvsort -c 1 | grep -v $(sed '1d' <CSV_SCOPE_FILE> |  csvcut -c 1 |awk 1 ORS='\\|' | sed   's/..$//')

Discovery of Hidden networks

# Dictionary attack
mdk3 ath0 p -f <WORDLIST.TXT> -t <BSSID>  -c <CHANNEL>
# Brute Force
mdk3 ath0 p -b {a|l|u|n|c|m} -t <00:11:22:33:44:55> -c <CHANNEL> [-s 1]

Discovery of unauthorised clients

cat <airodump-01.csv> | sed '0,/^\r.*/d' | sed '0,/^\r.*/d' | csvcut -c 1,6 | csvsort -c 2 -r | grep -v 'not associated'

find . -name  'airodump*[[:digit:]].csv' | xargs -I {} bash -c "cat {} | sed '0,/^\r.*/d' | sed '0,/^\r.*/d' | csvcut -c 1,6,7 | csvsort -c 2 -r | grep -v 'not associated'"

Discovery of known client device network preferences

cat <airodump-01.csv> | sed '0,/^\r.*/d' | csvcut -c 1,6,7 | csvsort -c 3

probequest <MON_ID> -w output.csv

Fingerprinting

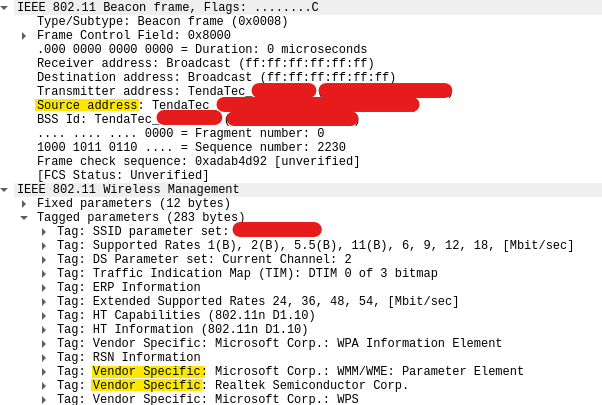

Identification of AP software

./wpsig.py <IF>

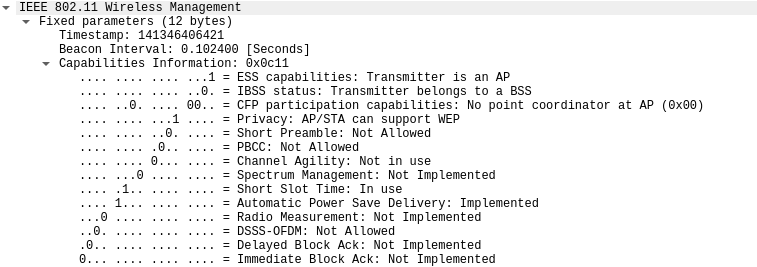

Supported capabilities

Analysis of insecure security protocols

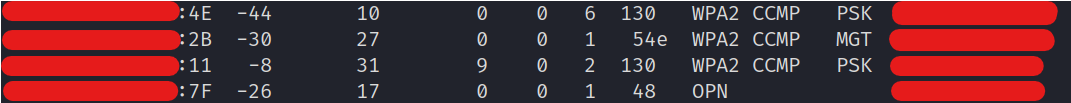

Encryption methods

Cypher methods

Cypher process	Cypher algorithm	Breaking the encryption attakcs
WEP	RC4	Initialization Vector (IV) collision attack, Weak Key Attack, Reinjection Attack or Bit flipping attack.
WPA	TKIP	Cracking the password obtained during initial 4-way handshake
WPA2	AES-CCMP	Cracking the password obtained during initial 4-way handshake
WPA3	AES-CCMP or AES-GCMP	Not know an official standard vulnerability in the cypher algorithm.

Authentication methods

Open (OPN)	No credentials are required to access the network.	Any attacker can have access to the network.
WiFi Protected Setup (WPS)	Allows users to access the network without needing to know the password, using a PIN generated by the router.	Attackers can gain access by finding out the PIN through brute force attacks.
Pre-Shared Key (PSK)	A pre-shared password is required to access the website.	If the pre-shared password is weak, it can be guessed by the attacker through brute force or dictionary attacks.
Extensible Authentication Protocol (EAP)	Users are required to authenticate themselves, using username and password, against an authentication server based on the 802.1x protocol.	An attacker could perform social engineering attacks to obtain a user's credentials.

WiFi Protected Setup (WPS)

sudo apt-get -y install build-essential libpcap-dev aircrack-ng pixiewps
git clone https://github.com/t6x/reaver-wps-fork-t6x
cd reaver-wps-fork-t6x*/
cd src/
./configure
make
sudo make install

sudo wash -i <MON_IF> -s [-2 | -5] [-a]

Security countermeasures

Verification of wireless signal area coverage

find . -name  'airodump*[[:digit:]].csv' | xargs -I {} bash -c "cat {} | sed '1d' | sed '/^Station MAC.*$/,$ d' | csvcut -c 14,9,1 | sed '1d'  | csvsort  -c 1| csvgrep -c 1 -i -r '^$'" | sed '1s/^/ESSID, Power, BSSID\n/' | csvlook | tee <wsac.md>

Signal strength	Quality to expect
>= -50 dBm	Excellent.
]-50,-60] dBm	Very good
]-60,-70] dBm	Good
]-70,-85] dBm	Poor
< -85 dBm	Unusable

Ссылки

---
